Delivery Date:
02/01/2018
Department Name:
Chapel Hill Fire Department
Department City / State:
Chapel Hill, NC

WHEEL BASE:  236″

TRAVEL HEIGHT: 11′-6″ ±2″

TRAVEL LENGTH: 46′-7″

CHASSIS:              Sutphen 62” Cab

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lbs.
  • Rear Axle and Suspension: 52,000 Lbs.
  • Engine: Cummins ISX 15 600HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

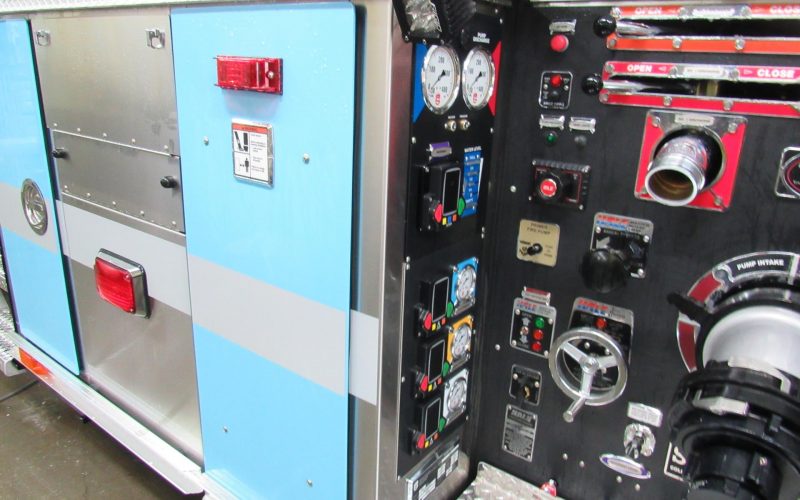

PUMP:                  Hale

  • QMAX-2000 GPM Single Stage
  • Discharge: (2) 2.5″ Left, 2.5″ left rear, 3″ Right, 2.5″ Right
  • 300 Gallon Water Tank

BODY:                   Sutphen

  • 293 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B
  • Selector Button for 360 Camera View.
  • Ziamatic SAC-44 Folding Wheel Chocks
