Delivery Date:
06/15/2018
Department Name:

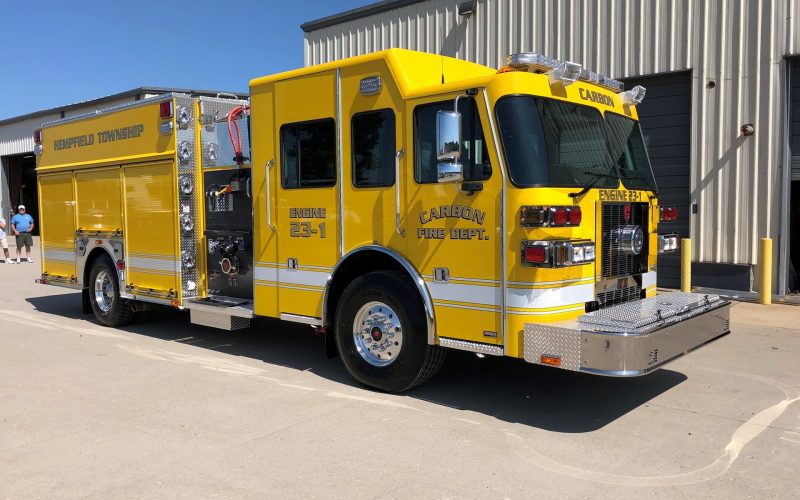

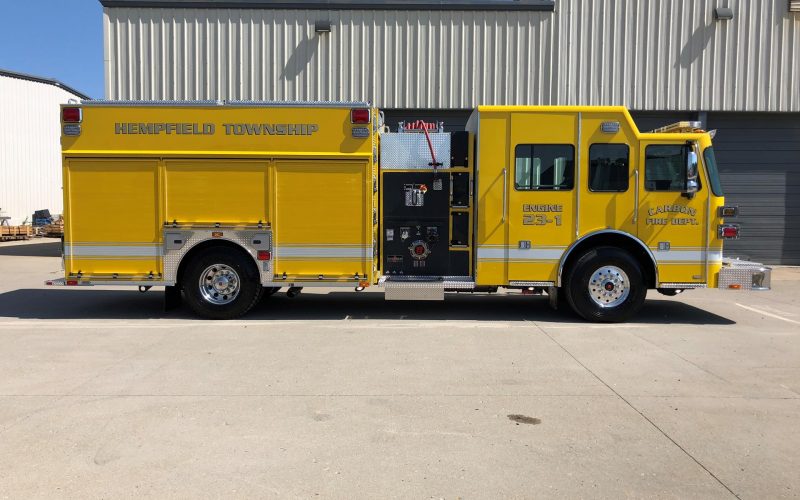

Carbon Volunteer Fire Department
Department City / State:
Greensburg, PA

WHEEL BASE: 219″

TRAVEL HEIGHT: 10′-5″ ±2″

TRAVEL LENGTH: 34′-5″

CHASSIS:              Sutphen 73” cab

  • Four-Door, Eight Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Front/Right of Main Hosebed, 3” Deck Gun
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 457 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • 12” Tailboard
  • Narrow Upper Compartment-Officier’s Side
  • Stokes Basket Beside Ground Ladders
  • Warning Lights, Zone C, Delete Beacons
  • Add 3 Pairs of Whelen 900 Series LED Warning Lights
  • Metal Partition
  • Lettering and Graphics Allowance
  • 53 Gallon Steel Fuel Tank
  • Additional Air Tank Reservoir
  • 1” Polished Stainless Steel Edge Protector on Rear Corner of Exterior Cab on each side
  • 40” Amdor H20 LED Light Strip in Bumper Trough
  • Storage Compartment with Locking Door in Overhead Console
  • 3-Way Switch for Master Scene
