Delivery Date:
12/01/2017
Department Name:
Cape Coral Fire Rescue
Department City / State:
Cape Coral, FL

WHEEL BASE: 226″

TRAVEL HEIGHT: 10′-1″±2″

TRAVEL LENGTH: 36′-4″

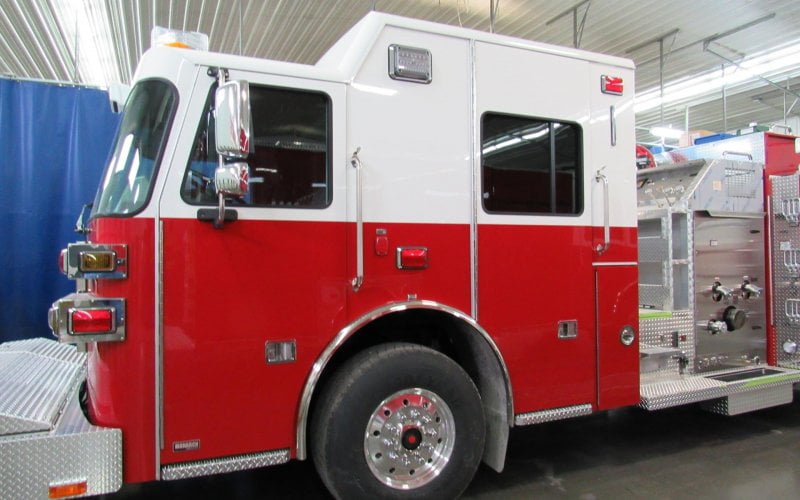

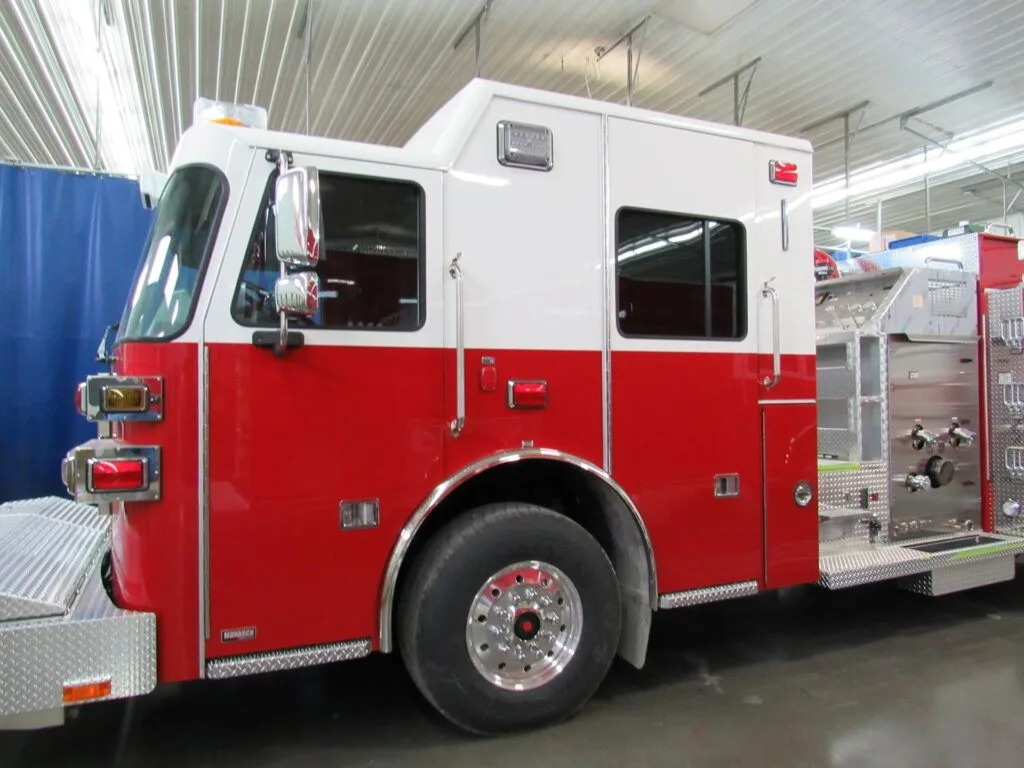

CHASSIS:              Sutphen 73” extended cab with half 15” raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lb.
  • Rear Axle and Suspension: 27,000 Lb.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-2000 GPM SINGLE STAGE
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ Left Rear, 1.5″ Front Bumper, 2″ Plumbing, 3″ Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 266 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B

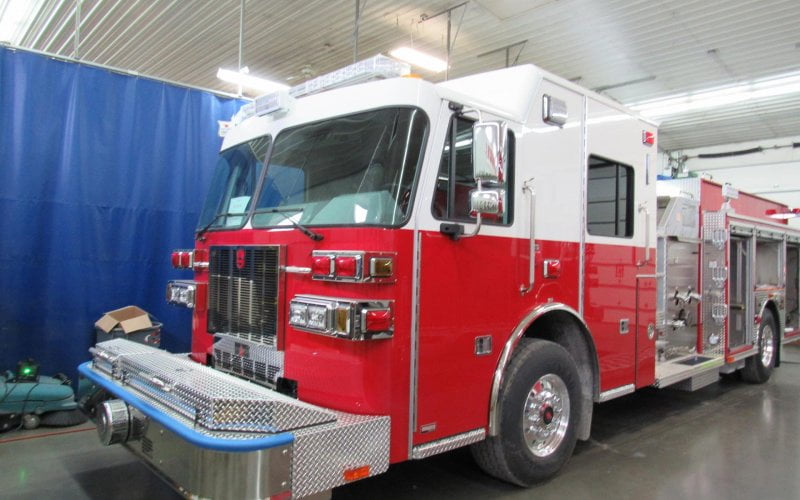

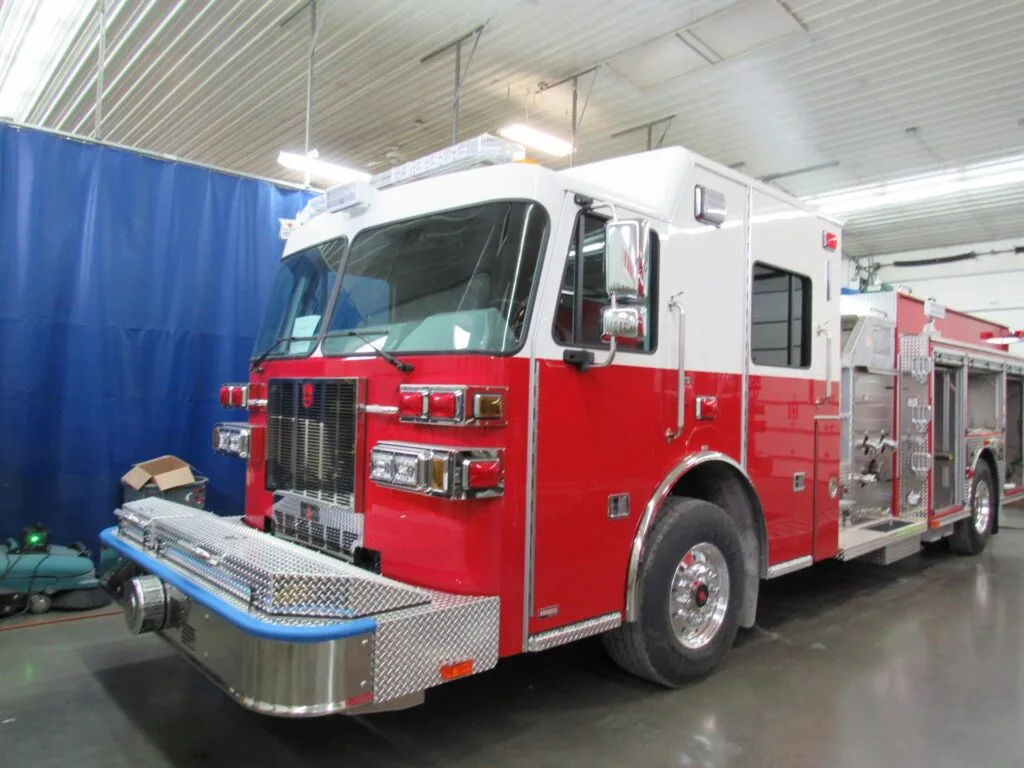

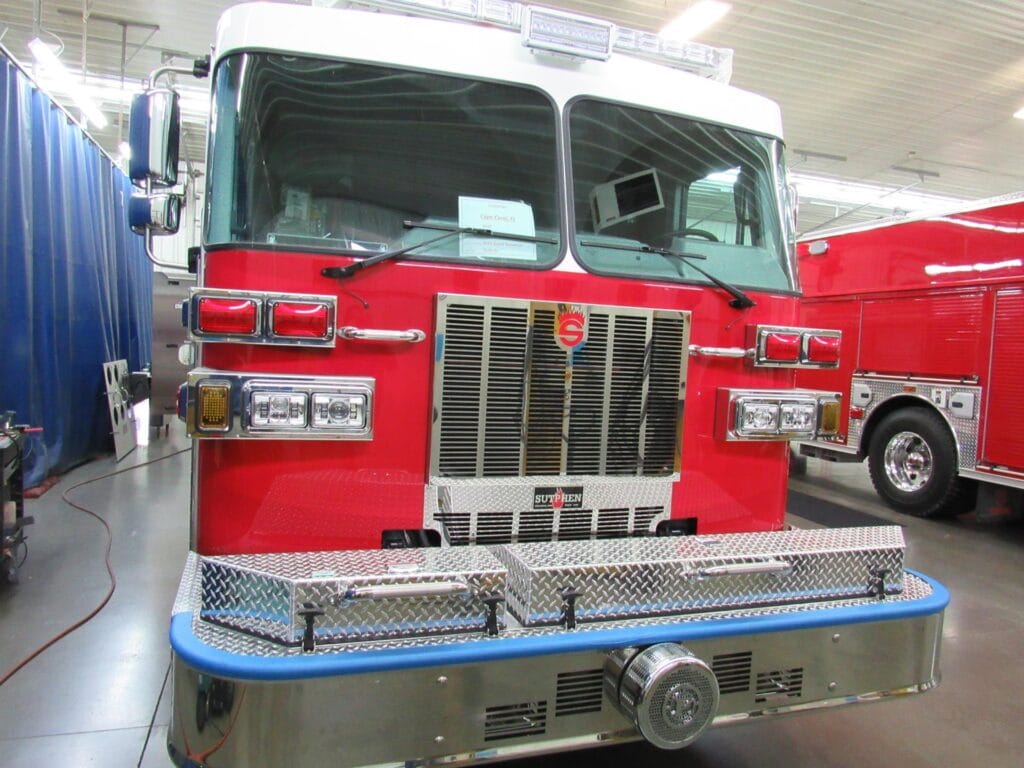

  • 30” Bumper
  • Ziamatic Hydraulic Ladder Rack
  • Handrail on back of Cab to access top mount panel
  • Air outlet driver’s side pump panel with 25’ of hose
  • Ladder Package, Duo Safety 24’ 2-Sec, 14’ Roof, & 10’ Folding
  • Exterior handrails on back of cab to access top mount panel
  • Storage Well, Deep Center, Full Width (30” Bumper)
