WHEEL BASE: 439.75”
TRAVEL HEIGHT: 9’ 11”
TRAVEL LENGTH: 41′-6.25″
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins ISX 12 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison GEN 5, EVS4000
PUMP: Hale
- QMAX 2000-GPM SINGLE STAGE
- Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ & 1.5” Upper Left Side of the Body, 2″ Valve/Plumbing
- 500 Gallon Water Tank

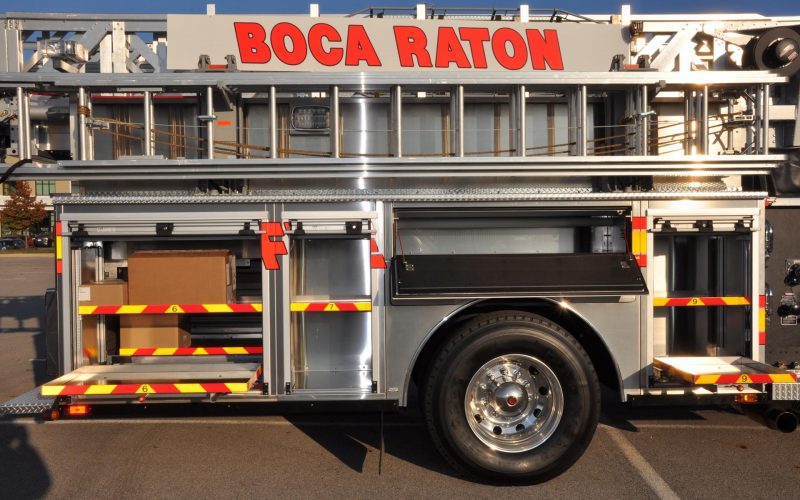

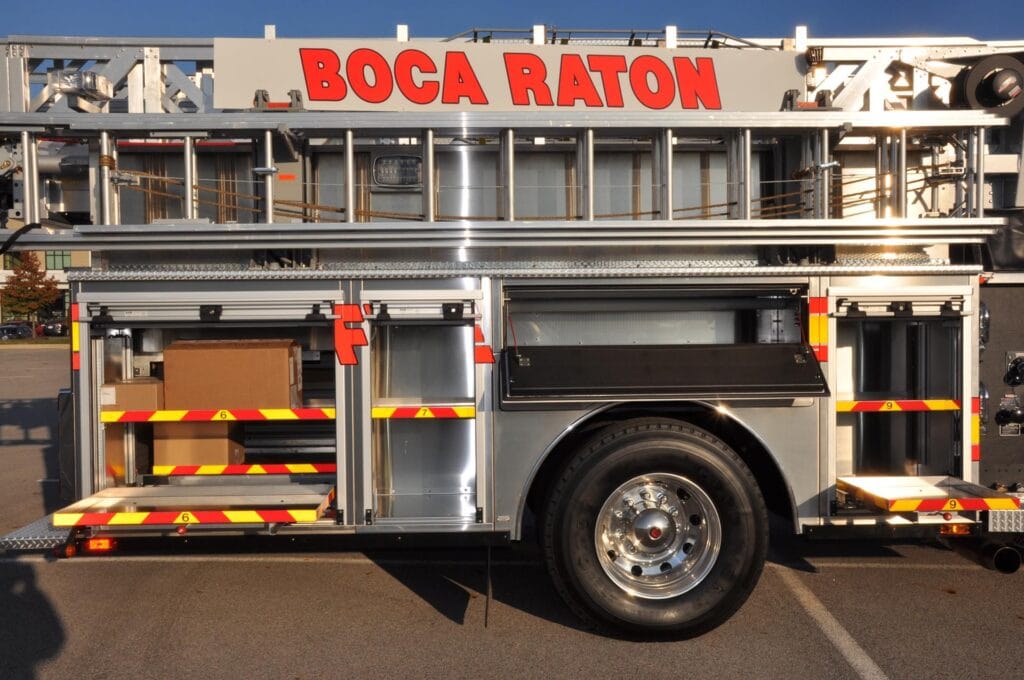

BODY: Sutphen
- Stainless Steel Subframe for body
- 75 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Scene Lights, Whelen
- Federal Q2B
- 30” Bumper Extension
- Smart Power Generator 10kw
- Hannay ECR 1614-17-18 Reel W/150’ 10/3
- Ziamatic SAC-44 Folding Wheel Chocks MTD W/SQCH 44H Holders
- Intercom System, FRC Act 2-station
- “Panic Lock” in Cab
- 16 Ft. and 14 Ft. Roof Ladders on Boom
- Electric Ladder Rack
