WHEEL BASE: 221”
TRAVEL HEIGHT: 10′-0 1/2″
TRAVEL LENGTH: 40′-6 1/4″
CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Five-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

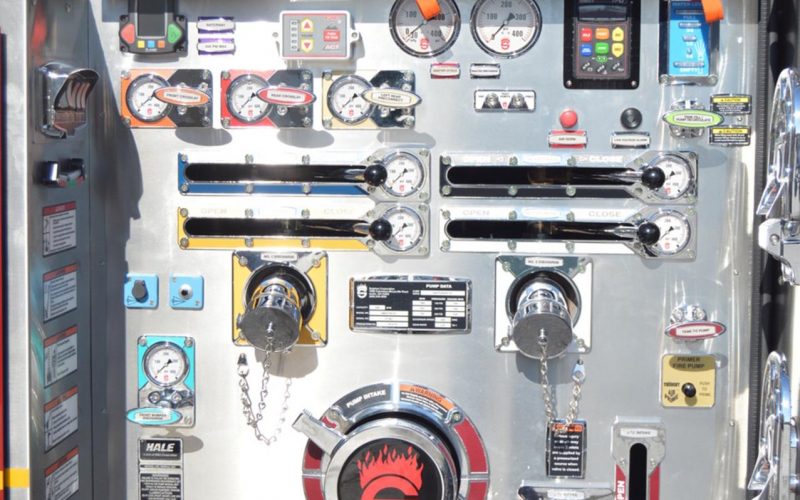

PUMP: Hale
- QMAX-1500 GPM 6” Single Suction Stage
- Discharge: (2) 2.5 Left, 3” Right, 2.5” Right, 2.5” Upper Left Side Body, 1.5” Front Bumper, 2” Plumbing, 2.5” Auxiliary Waterway
- 500 Gallon Water Tank
BODY: Sutphen
- 75 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Additional Pair Rigid LED Flood Lights
- More Space in between Forward-Facing Seats (6”)
