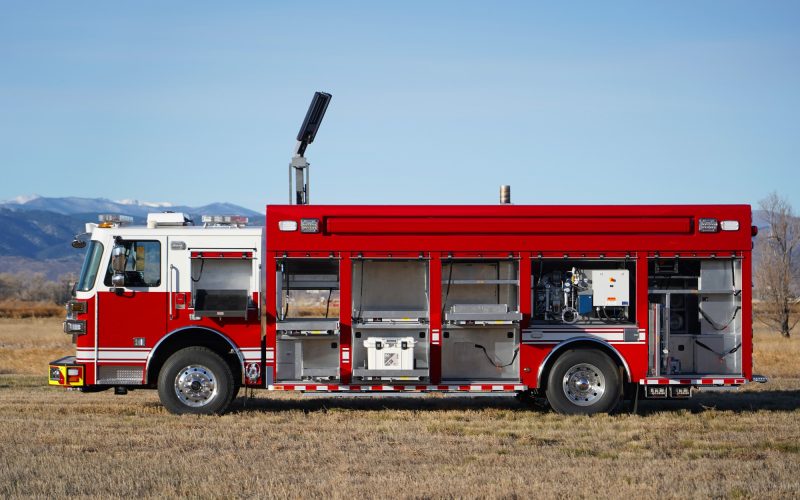

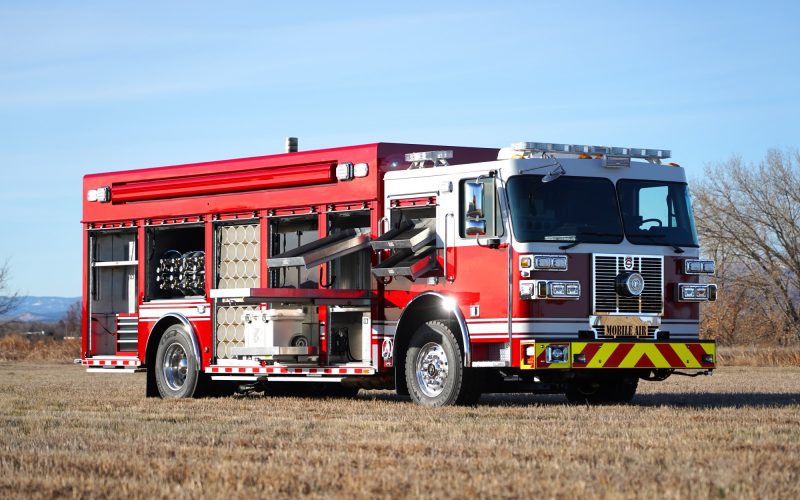

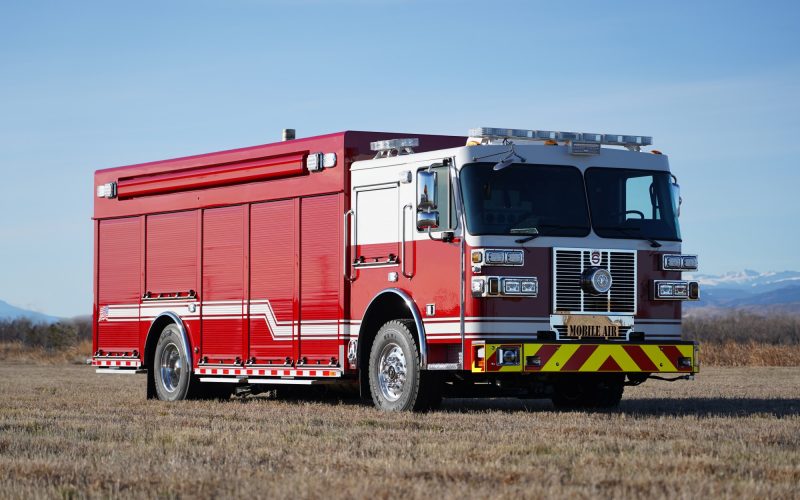

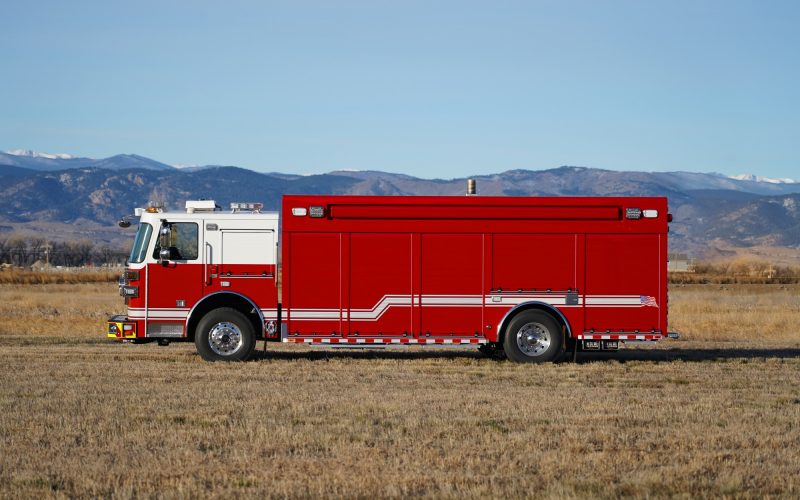

HS #6561
WHEELBASE: 214 ¼”
TRAVEL HEIGHT: 10’ – 9”
TRAVEL LENGTH: 32’ – 7”

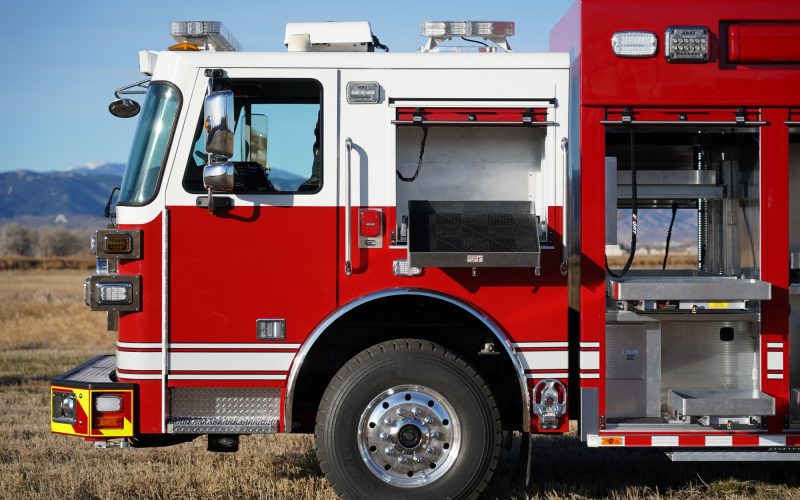

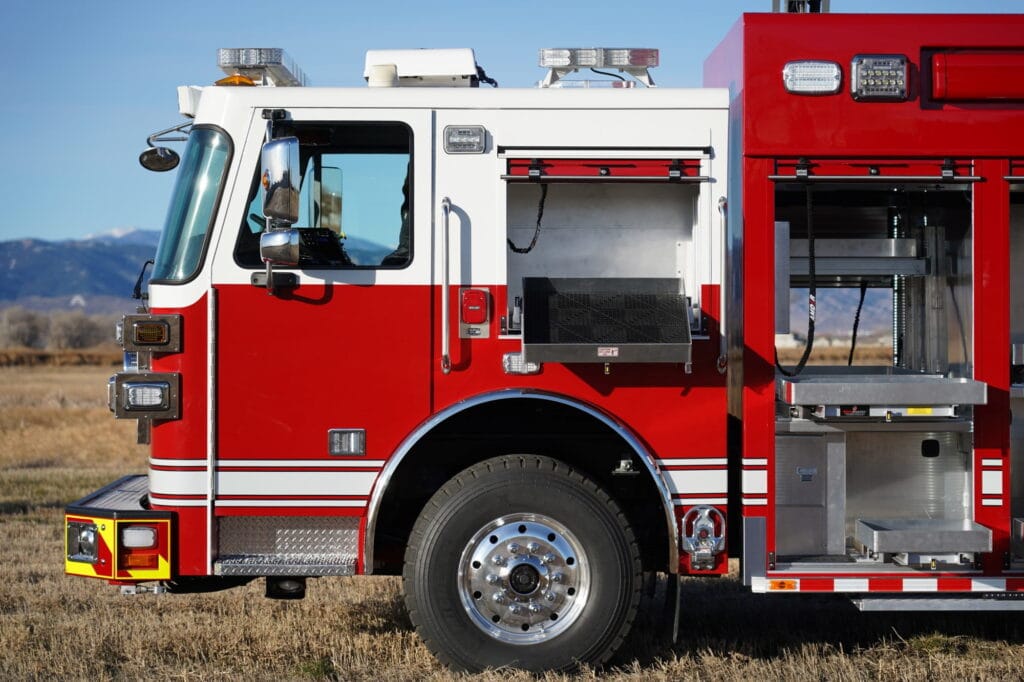

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 36” Cab
- Two-Door, Two-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 455 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
BODY: Sutphen
- Aluminum
- Body Length: 22’
ADDITIONAL EQUIPMENT:
- 12” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Bauer 6600 PSI Compressor System
- (2) Bauer CFS5.5-3S Fill Stations
- Bauer Filtration System on Slideout Tool Board
- (14) Air Storage Units
- Command Light KL Slim Light Tower
- Carefree Freedom Rear, Street and Curb Roll-Out Awning
- Hannay Electric Cable Reels
- SlideMaster Steel Slideout Trays
- OnScene Solutions LED Compartment Lighting
- (2) Norcold Refrigerators
- Pelican 55QT Tailgater Wheeled Ice Cooler
- Whelen Freedom IV Rota-Beam 81” LED Light Bar
- Whelen Freedom IV (2) 21” LED Light Bars
- FireTech FT-GSMJR Scene Lights
