Delivery Date:
05/01/2018
Department Name:
Orlando Fire Department
Department City / State:
Orlando Fire, FL

WHEEL BASE:  236”

TRAVLE HEIGHT: 11′ 6″ ±2″

TRAVEL LENGTH: 47′-7″

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lbs.
  • Rear Axle and Suspension: 52,000 Lbs.
  • Engine: Cummins ISX 12 500HP
  • Transmission: Allison Gen 5

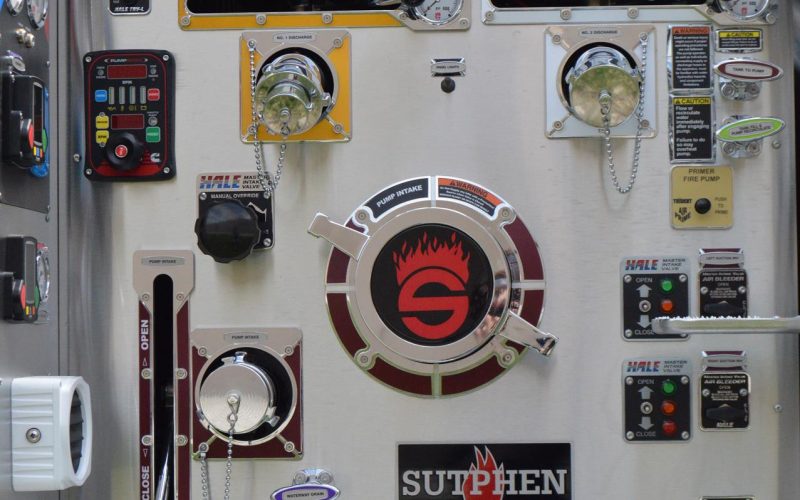

PUMP:                  Hale

  • XS QMAX-1500 GPM 6” Suction Single Stage Pump
  • Discharge: (2) 2.5” Left, (2) 2.5” Right
  • 300 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 331 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Harrison 10 KW HYD Generator
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Boom Sign Approximately 128” X 18”
  • Hydraulic Lead-In Lines, Twin 6’ (Pair)
  • (3) 8 LB Flat Head Axes and Mounts
  • Start Guard
  • Exhaust Adaptor for Plymovent Grabber System, Magnagrip
  • Kussmaul Remote Bar Graph Display Upgrade
  • Automatic Lube System, Groenveld, Tandem Axle
  • Master Shut off Switch with Guard for Q2B
  • Polished Stainless Steel Trim Wrapped 1” around side of Cab
  • TIR-3 Door Ajar Light
  • Momentary Kill Switch for Door Ajar
  • Two Additional Fans in Crew Area
  • Handwheel Override for Waterway Valve
