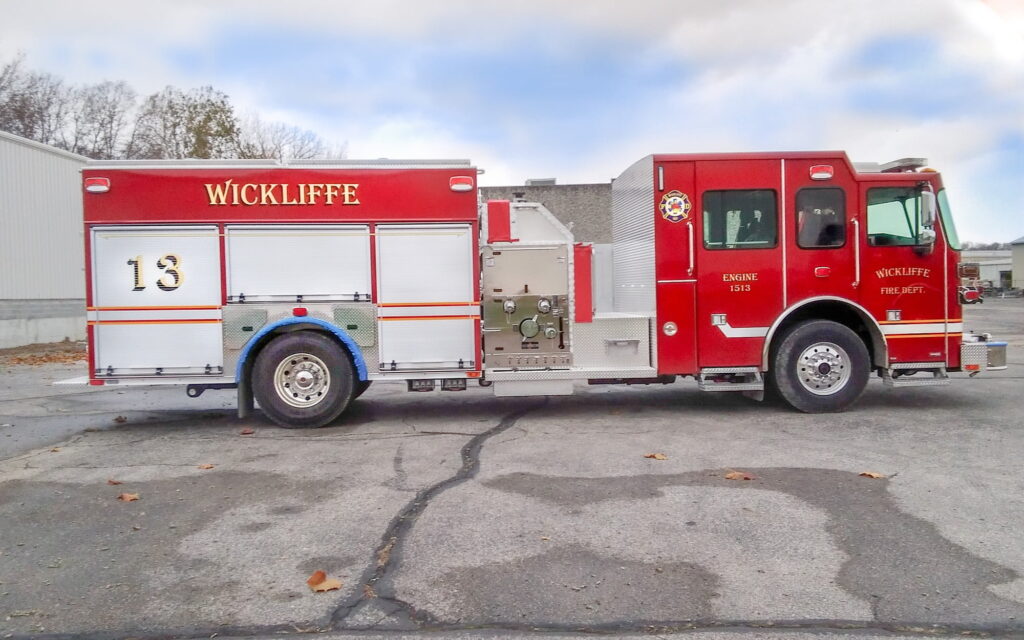

Custom Pumper – Wickliffe Fire Department, OH

Location:
Wickliffe, OH
Department:
Wickliffe Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax 1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
Crosslay
(1) 2 ½“ W/ 2 ½“ Swivel
Water Tank
750 gallon
Water Tank
25 gallon foam tank
Foam System, Akron
95 gpm 3096 internal eductor w/ flush valve
Construction
3/16” extruded aluminum
Doors
Amdor & rom roll-up compartment , satin finish
Total Compartment Space
294 cu. ft.
Alco-Lite ladder package
PEL-24 24’ 2-sec & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Aluminum 40/51 Ladders Thru Tank
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade, Backeye 360 Camera System
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
Whelen M9V Red
Leds scene
Whelen LED, TAL65
36” traffic advisor
