Delivery Date:
01/27/2025
Department Name:

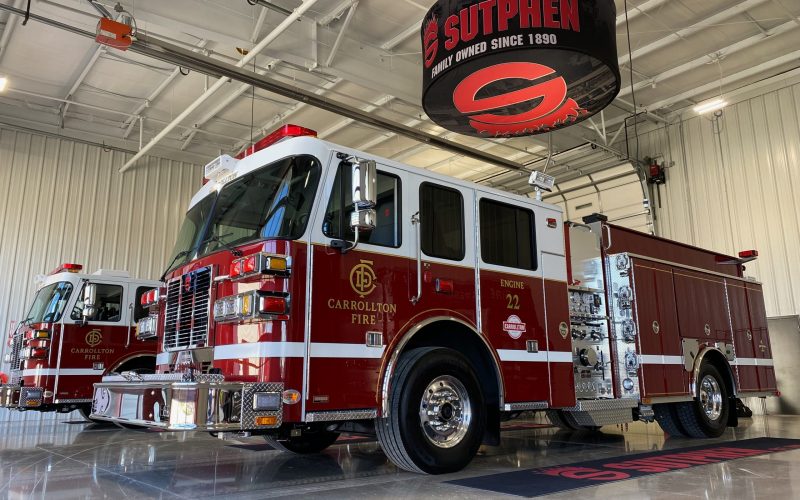

Carrollton Fire Department
Department City / State:
Carrollton, GA
Truck Type:
Dealer – Williams Fire Apparatus
WHEELBASE: 196 ½”
TRAVEL HEIGHT: 9’ – 11 ½”
TRAVEL LENGTH: 32’ – 2 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4500
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam Eductor: Akron 125 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 250 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S9 – Alum 43/53 Lad Thru Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Electric Siren, Whelen 295HFS2, Remote Flush Mount
- Camera System: Voyager 2 (Wired)
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 LED 12V Brow Light
- FireTech FT-MB-9-TR-FT 12V Scene Lights
- Whelen PFH2 12V Fixed, LED
- Whelen McFled Rear Beacons
- FireTech Work Lights
