Delivery Date:
05/20/2021
Department Name:
Gates Fire District, NY
Department City / State:
Rochester, NY

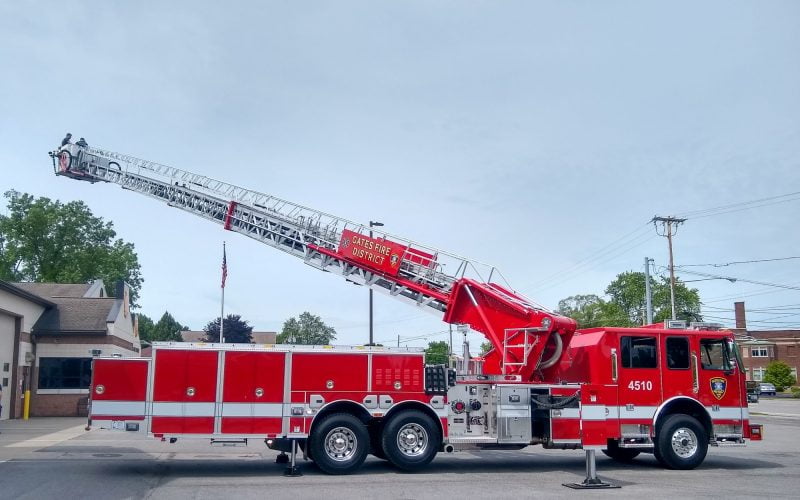

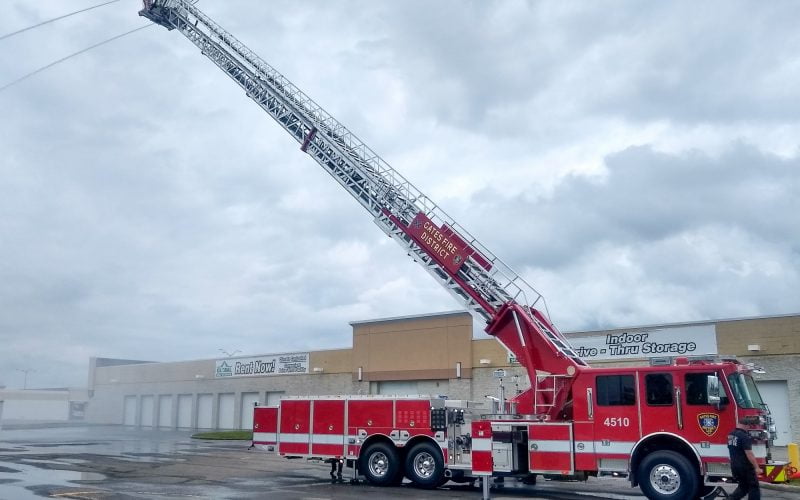

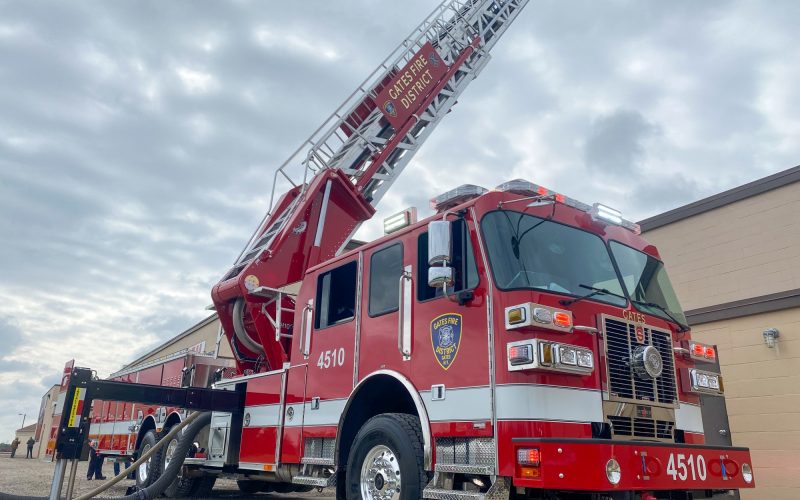

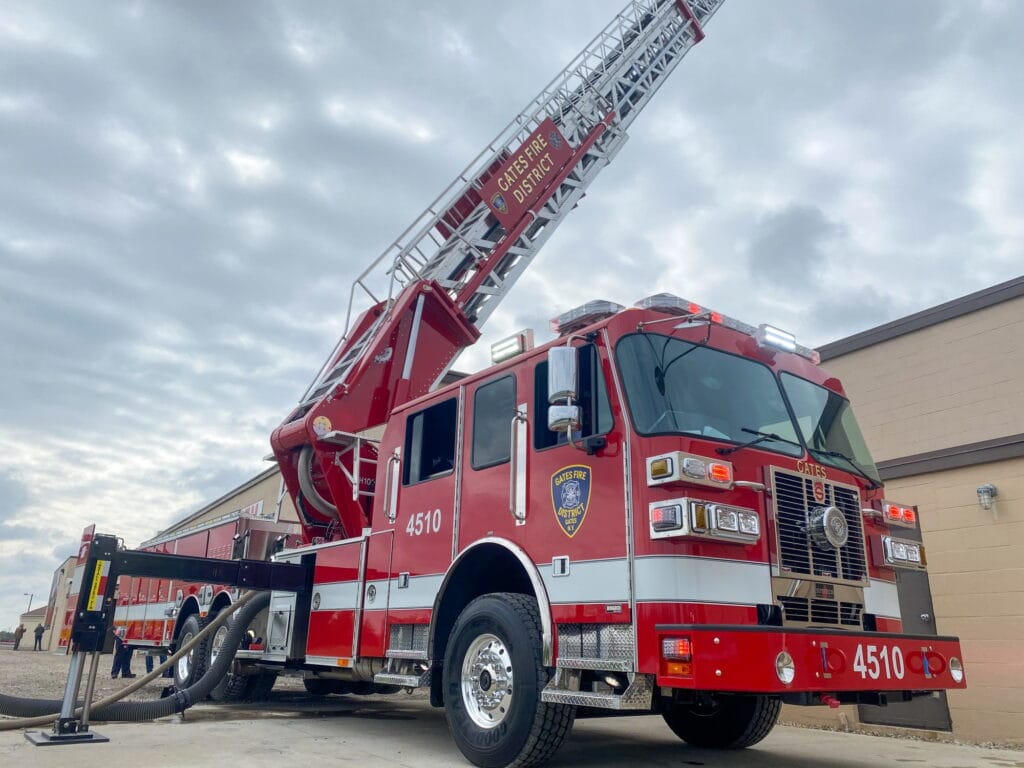

Sutphen Corporation – HS #6752

Dealer – Herb Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Hinged Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment: 171’: (2) 16’ Roof, 18’ Roof, 20’ Roof, (2) 28’-2Sec, 35’-2Sec & 10’F
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Painted Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • FRC ACT 3-Station Intercom System
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Harrison, 8KW HYD
  • Whelen Freedom IV 72” LED Lightbars
  • Whelen Freedom IV 21” LED Light Bar
  • FR Spectra 12V Scene
  • FR Spectra Tripod 120V Scene
  • FR Spectra Max Brow

MONITOR:

  • Driver Side Monitor: TFT Monsoon, Manual 1250 GPM w/ Manual VUM
  • Driver Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
  • Officer Side Monitor: TFT Monsoon, Manual 1250 GPM w/ Manual VUM
  • Officer Side Nozzle: TFT M-R1250-NJ Automatic Fog Nozzle
